Computer Vision with JavaFX and DJL

Computer Vision is not a new topic in Computer Science, but in the recent years it got a boost due the use of Neural Networks for classification, object detection, instance segmentation and pose prediction.

We can make use of these algorithms in Java using a Deep Learning library, such as DL4J as we already did in this blog with handwritten digits recognition, and detecting objects in a JavaFX application.

However, deep learning is popular mostly among Python developers (one reason is because Python easily wraps on top of native libraries, it will be easier in Java after Project Panama), so we have much more pre-trained models for Tensorflow and Pytorch libraries. It is possible to import them, but it requires a bit more of work then simply reusing a pre-trained model.

Fortunately there is a new library called Deep Java Library which offers a good set of pre-trained models. It makes use of Jupyter, which makes easier to try the library APIs. Another DJL feature is that it is made to wrap an existing library, so it works on top of Keras, Tensorflow, MXNet and other libraries.

In this post we will test some of the DJL Computer Vision models from a JavaFX application. Let's start first capturing webcam from JavaFX then use this input to a pre-trained model

Capturing Web Cam

The input data for the neural network we capture a webcam image. The project that worked without any issue with JavaFX on my Fedora 34 is capture-webcam. I used the JavaFX sample code and it just worked. See my workspace captured from the webcam:

Using Pre-trained Neural Networks

I started with a maven project that only used the webcam-capture. Then I added DJL maven dependencies and Eclipse allowed me to import the classes from DJL. Later I had also the ML library engine to run my models, this is how my final pom.xml looks like:

	<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>org.fxapps</groupId>
	<artifactId>webcam-example-javafx</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>WebCam capture from a JavaFX application</name>
	<properties>
	<maven.compiler.source>16</maven.compiler.source>
	<maven.compiler.target>16</maven.compiler.target>
	<version.webcam.capture>0.3.12</version.webcam.capture>
	<version.javafx>17-ea+16</version.javafx>
	<djl.version>0.12.0</djl.version>
	</properties>
	<dependencyManagement>
	<dependencies>
	<dependency>
	<groupId>ai.djl</groupId>
	<artifactId>bom</artifactId>
	<version>${djl.version}</version>
	<type>pom</type>
	<scope>import</scope>
	</dependency>
	</dependencies>
	</dependencyManagement>
	<dependencies>
	<!-- WebCam Capture -->
	<dependency>
	<groupId>com.github.sarxos</groupId>
	<artifactId>webcam-capture</artifactId>
	<version>${version.webcam.capture}</version>
	</dependency>
	<!-- OpenJFX -->
	<dependency>
	<groupId>org.openjfx</groupId>
	<artifactId>javafx-controls</artifactId>
	<version>${version.javafx}</version>
	</dependency>
	<dependency>
	<groupId>org.openjfx</groupId>
	<artifactId>javafx-graphics</artifactId>
	<version>${version.javafx}</version>
	</dependency>
	<dependency>
	<groupId>org.openjfx</groupId>
	<artifactId>javafx-media</artifactId>
	<version>${version.javafx}</version>
	</dependency>
	<dependency>
	<groupId>org.openjfx</groupId>
	<artifactId>javafx-swing</artifactId>
	<version>${version.javafx}</version>
	</dependency>
	<!-- ================ From DJL Examples ================ -->
	<dependency>
	<groupId>commons-cli</groupId>
	<artifactId>commons-cli</artifactId>
	<version>1.4</version>
	</dependency>
	<dependency>
	<groupId>org.apache.logging.log4j</groupId>
	<artifactId>log4j-slf4j-impl</artifactId>
	<version>2.12.1</version>
	</dependency>
	<dependency>
	<groupId>com.google.code.gson</groupId>
	<artifactId>gson</artifactId>
	<version>2.8.5</version>
	</dependency>
	<dependency>
	<groupId>ai.djl</groupId>
	<artifactId>api</artifactId>
	</dependency>
	<dependency>
	<groupId>ai.djl</groupId>
	<artifactId>basicdataset</artifactId>
	</dependency>
	<dependency>
	<groupId>ai.djl</groupId>
	<artifactId>model-zoo</artifactId>
	</dependency>
	<!-- MXNet -->
	<dependency>
	<groupId>ai.djl.mxnet</groupId>
	<artifactId>mxnet-model-zoo</artifactId>
	</dependency>
	<dependency>
	<groupId>ai.djl.mxnet</groupId>
	<artifactId>mxnet-engine</artifactId>
	</dependency>
	<dependency>
	<groupId>ai.djl.mxnet</groupId>
	<artifactId>mxnet-native-auto</artifactId>
	<scope>runtime</scope>
	</dependency>
	<!-- Pytorch -->
	<dependency>
	<groupId>ai.djl.pytorch</groupId>
	<artifactId>pytorch-engine</artifactId>
	</dependency>
	<dependency>
	<groupId>ai.djl.pytorch</groupId>
	<artifactId>pytorch-native-auto</artifactId>
	</dependency>
	<!-- Tensorflow -->
	<dependency>
	<groupId>ai.djl.tensorflow</groupId>
	<artifactId>tensorflow-model-zoo</artifactId>
	</dependency>
	<dependency>
	<groupId>ai.djl.tensorflow</groupId>
	<artifactId>tensorflow-engine</artifactId>
	<scope>runtime</scope>
	</dependency>
	<dependency>
	<groupId>ai.djl.tensorflow</groupId>
	<artifactId>tensorflow-native-cpu</artifactId>
	<classifier>linux-x86_64</classifier>
	<scope>runtime</scope>
	</dependency>
	<dependency>
	<groupId>ai.djl.tensorflow</groupId>
	<artifactId>tensorflow-native-auto</artifactId>
	<scope>runtime</scope>
	</dependency>
	</dependencies>
	</project>

view raw pom.xml hosted with ❤ by GitHub

Back to the code, what I wanted was to grab the image from the webcam, input into a pre-trained model, get the result and print in JavaFX instead printing the webcam image. To allow users to test the pre-trained models we added a combo box to the user interface.

To abstract the model we created a abstract class called MLModel. This class wraps the model call, so we can focus on printing the image and the UI will not know about any specific model, making it easy to add and remove models. The class MLModel grabs the predictions from the ML algorithm and draw on the image accordingly to the result type:

	package org.fxapps.predict;
	import java.awt.image.BufferedImage;
	import ai.djl.modality.cv.Image;
	import ai.djl.modality.cv.ImageFactory;
	import ai.djl.modality.cv.output.DetectedObjects;
	import ai.djl.modality.cv.output.Joints;
	import org.fxapps.predict.model.PoseEstimationPrediction;
	public abstract class MLModel<T> {
	public abstract String getName();
	public T predict(BufferedImage image) {
	var img = ImageFactory.getInstance().fromImage(image);
	return predict(img);
	}
	protected abstract T predict(Image image);
	public BufferedImage predictAndDraw(BufferedImage image) {
	var img = ImageFactory.getInstance().fromImage(image);
	T result = predict(img);
	if (result instanceof Joints joints) {
	img.drawJoints(joints);
	}
	if (result instanceof PoseEstimationPrediction poseEstimation) {
	poseEstimation.personRect().ifPresent(rect -> {
	img.getSubimage((int) rect.getX(),
	(int) rect.getY(),
	(int) rect.getWidth(),
	(int) rect.getHeight())
	.drawJoints(poseEstimation.joints());
	});
	}
	if (result instanceof DetectedObjects objects) {
	img.drawBoundingBoxes(objects);
	}
	// do not work on Android due hard code of BufferedImage
	// change the use of BufferedImage so it should work on Android as well
	return (BufferedImage) img.getWrappedImage();
	}
	@Override
	public String toString() {
	return getName();
	}
	}

view raw MLModel.java hosted with ❤ by GitHub

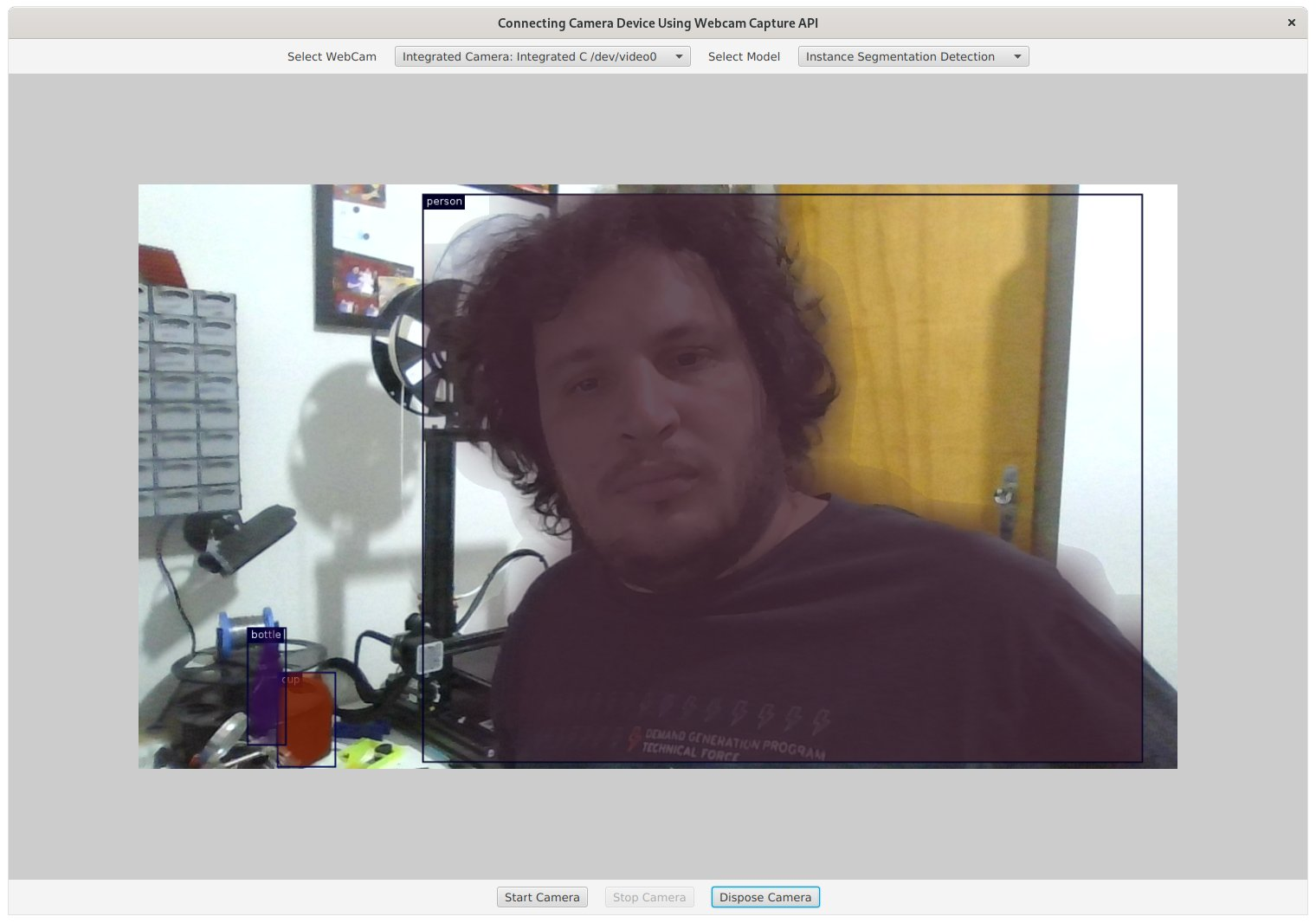

In the UI we have an array of implementations, which are selected when the combo box changes. We could use other ways to select the model, like Java Service Provider, but for our code we decided to keep it simple.

	// objects to allow users to select a ML Model
	ObjectProperty<MLModel<?>> selectedModel = new SimpleObjectProperty<>();
	List<MLModel<?>> models = List.of(new ObjectDetectionMLModel(),
	new InstanceSegmentationMLModel(),
	new PoseEstimationMLModel());
	AtomicBoolean runningPrediction = new AtomicBoolean();
	// Creating the combo box and binding the selected model to what user selects
	var modelOptions = new ComboBox<MLModel<?>>();
	selectedModel.bind(modelOptions.getSelectionModel().selectedItemProperty());
	modelOptions.getItems().addAll(models);
	modelOptions.getSelectionModel().select(0);
	// later when there's a new image from webcam, we lock the prediction while other is running
	// the code below runs on a thread separated from JavaFX main thread
	while (!stopCamera) {
	try {
	if ((img = webCam.getImage()) != null) {
	if (!runningPrediction.get()) {
	runningPrediction.set(true);
	img = selectedModel.get().predictAndDraw(img);
	runningPrediction.set(false);
	}
	img.flush();
	ref.set(SwingFXUtils.toFXImage(img, ref.get()));
	Platform.runLater(() -> imageProperty.set(ref.get()));
	}
	} catch (Exception e) {
	e.printStackTrace();
	}
	}

view raw SelectModel.java hosted with ❤ by GitHub

Finally it was time to implement the algorithms itself. First we created MLModel implementation for Object detection. It returns a class of type DetectedObject and we re able to build the pre-trained model as we want. We could select the engine, select the data used to train the model and other parameters using the class ai.djl.repository.zoo.Criteria. In our case we selected from the Engine Tensorflow a model that was trained using the mobilenet_v2 dataset. A video is on my twitter.

	package org.fxapps.predict;
	import java.io.IOException;
	import ai.djl.Application;
	import ai.djl.MalformedModelException;
	import ai.djl.inference.Predictor;
	import ai.djl.modality.cv.Image;
	import ai.djl.modality.cv.output.DetectedObjects;
	import ai.djl.repository.zoo.Criteria;
	import ai.djl.repository.zoo.ModelNotFoundException;
	import ai.djl.training.util.ProgressBar;
	import ai.djl.translate.TranslateException;
	public class ObjectDetectionMLModel extends MLModel<DetectedObjects> {
	private Predictor<Image, DetectedObjects> predictor;
	public ObjectDetectionMLModel() {
	try {
	predictor = buildCriteria().loadModel().newPredictor();
	} catch (ModelNotFoundException | MalformedModelException | IOException e) {
	throw new RuntimeException("Not able to load detect object models", e);
	}
	}
	protected Criteria<Image, DetectedObjects> buildCriteria() {
	return Criteria.builder()
	.optEngine("TensorFlow")
	.optApplication(Application.CV.OBJECT_DETECTION)
	.setTypes(Image.class, DetectedObjects.class)
	.optFilter("backbone", "mobilenet_v2")
	.optArgument("threshold", "0.2")
	.optProgress(new ProgressBar())
	.build();
	}
	@Override
	public String getName() {
	return "Object Detection";
	}
	@Override
	public DetectedObjects predict(Image image) {
	try {
	return predictor.predict(image);
	} catch (TranslateException e) {
	throw new RuntimeException("Not able to detect objects", e);
	}
	}
	}

view raw ObjectDetectionMLModel.java hosted with ❤ by GitHub

For Pose Prediction we had to internally run two models: the first to extract Person from the input image and the other to do the PoseEstimation itself. We also had to calculate the points of the pose relative to the input image. See a video for this model

	package org.fxapps.predict;
	import java.io.IOException;
	import java.nio.file.Files;
	import java.nio.file.Path;
	import java.nio.file.Paths;
	import java.util.Collections;
	import java.util.Optional;
	import ai.djl.Application;
	import ai.djl.MalformedModelException;
	import ai.djl.inference.Predictor;
	import ai.djl.modality.cv.Image;
	import ai.djl.modality.cv.output.DetectedObjects;
	import ai.djl.modality.cv.output.Joints;
	import ai.djl.modality.cv.output.Rectangle;
	import ai.djl.repository.zoo.Criteria;
	import ai.djl.repository.zoo.ModelNotFoundException;
	import ai.djl.training.util.ProgressBar;
	import ai.djl.translate.TranslateException;
	import org.fxapps.predict.model.PoseEstimationPrediction;
	public final class PoseEstimationMLModel extends MLModel<PoseEstimationPrediction> {
	private Predictor<Image, DetectedObjects> objectsPredictor;
	private Predictor<Image, Joints> posePredictor;
	private static Joints EMPTY_JOINTS = new Joints(Collections.emptyList());
	public PoseEstimationMLModel() {
	super();
	try {
	// more precision
	// objectsPredictor =
	// Criteria.builder()
	// .optApplication(Application.CV.OBJECT_DETECTION)
	// .setTypes(Image.class, DetectedObjects.class)
	// .optFilter("size", "512")
	// .optFilter("backbone", "resnet50")
	// .optFilter("flavor", "v1")
	// .optFilter("dataset", "voc")
	// .optProgress(new ProgressBar())
	// .build()
	// .loadModel()
	// .newPredictor();
	// faster
	objectsPredictor = Criteria.builder()
	.optEngine("TensorFlow")
	.optApplication(Application.CV.OBJECT_DETECTION)
	.setTypes(Image.class, DetectedObjects.class)
	.optFilter("backbone", "mobilenet_v2")
	.optArgument("threshold", "0.1")
	.optProgress(new ProgressBar())
	.build()
	.loadModel()
	.newPredictor();
	} catch (ModelNotFoundException | MalformedModelException | IOException e) {
	throw new RuntimeException("Not able to load object detector model.");
	}
	try {
	posePredictor = Criteria.builder()
	.optApplication(Application.CV.POSE_ESTIMATION)
	.setTypes(Image.class, Joints.class)
	.optFilter("backbone", "resnet18")
	.optFilter("flavor", "v1b")
	.optFilter("dataset", "imagenet")
	.build().loadModel().newPredictor();
	} catch (ModelNotFoundException | MalformedModelException | IOException e) {
	throw new RuntimeException("Not able to load pose estimatino model.");
	}
	}
	@Override
	public String getName() {
	return "Pose Estimation";
	}
	@Override
	protected PoseEstimationPrediction predict(Image image) {
	try {
	var personPosOp = retrievePerson(image);
	var personJoints = personPosOp.map(rect -> predictPose(image, rect))
	.orElse(EMPTY_JOINTS);
	return new PoseEstimationPrediction(personPosOp, personJoints);
	} catch (TranslateException e) {
	e.printStackTrace();
	return new PoseEstimationPrediction(Optional.empty(), EMPTY_JOINTS);
	}
	}
	private Optional<Rectangle> retrievePerson(Image img) throws TranslateException {
	var detectedBoxes = objectsPredictor.predict(img);
	// use to draw the predicted objects
	// img.drawBoundingBoxes(detectedBoxes);
	return detectedBoxes.items()
	.stream()
	.map(i -> (DetectedObjects.DetectedObject) i)
	.filter(item -> "person".equalsIgnoreCase(item.getClassName()))
	.findFirst()
	.map(box -> extractPersonBounds(img, box));
	}
	private Rectangle extractPersonBounds(Image img, DetectedObjects.DetectedObject box) {
	var rect = box.getBoundingBox().getBounds();
	int width = img.getWidth();
	int height = img.getHeight();
	int personX = (int) (rect.getX() * width);
	int personY = (int) (rect.getY() * height);
	int personWidth = (int) (rect.getWidth() * width);
	int personHeight = (int) (rect.getHeight() * height);
	if (personX > personWidth) {
	personX = personWidth;
	}
	if (personY > personHeight) {
	personY = personHeight;
	}
	if (personX < 0) {
	personX = 0;
	}
	if (personY < 0) {
	personY = 0;
	}
	int rectXBound = personX + personWidth;
	int rectYBound = personY + personHeight;
	if (rectXBound > img.getWidth()) {
	personWidth = personWidth - (rectXBound - img.getWidth());
	}
	if (rectYBound > img.getHeight()) {
	personHeight = personHeight - (rectYBound - img.getHeight());
	}
	return new Rectangle(personX, personY, personWidth, personHeight);
	}
	private Joints predictPose(Image image, Rectangle rect) {
	try {
	var personImage = image.getSubimage((int) rect.getX(),
	(int) rect.getY(),
	(int) rect.getWidth(),
	(int) rect.getHeight());
	return posePredictor.predict(personImage);
	} catch (TranslateException e) {
	e.printStackTrace();
	return EMPTY_JOINTS;
	}
	}
	// use this for debug purpose
	protected static void saveJointsImage(Image img, Joints joints) {
	Path outputDir = Paths.get("build/output");
	try {
	Files.createDirectories(outputDir);
	img.drawJoints(joints);
	Path imagePath = outputDir.resolve("joints.png");
	// Must use png format because you can't save as jpg with an alpha channel
	img.save(Files.newOutputStream(imagePath), "png");
	} catch (IOException e) {
	e.printStackTrace();
	}
	}
	}

view raw PoseEstimationMLModel.java hosted with ❤ by GitHub

Finally we also have Instance Segmentation, but it was so, so slow that I will not discuss it here. You are free to run the application and test it.

Conclusion

Java is a good alternative for building Machine Learning applications! DJL and its great model zoo makes it easier to reuse ms trained with other libraries. Next steps would be use other family of trained models, such as NLP and create more useful applications, like augmented reality!

Full code on Github.
